8 mLarge machining
CNC gantry machining center
Large parts are roughed and finished in the same workshop. Gantry mills, horizontal lathes, boring machines and machining centers are scheduled by operation, reducing datum errors from moving between shops.
Equipment list
From an 8 m gantry to a large horizontal lathe: structural parts, shafts, housings and bore work.
Maximum part size is confirmed against the drawing and fixturing plan. If a part exceeds the current envelope, we review the process before replying.

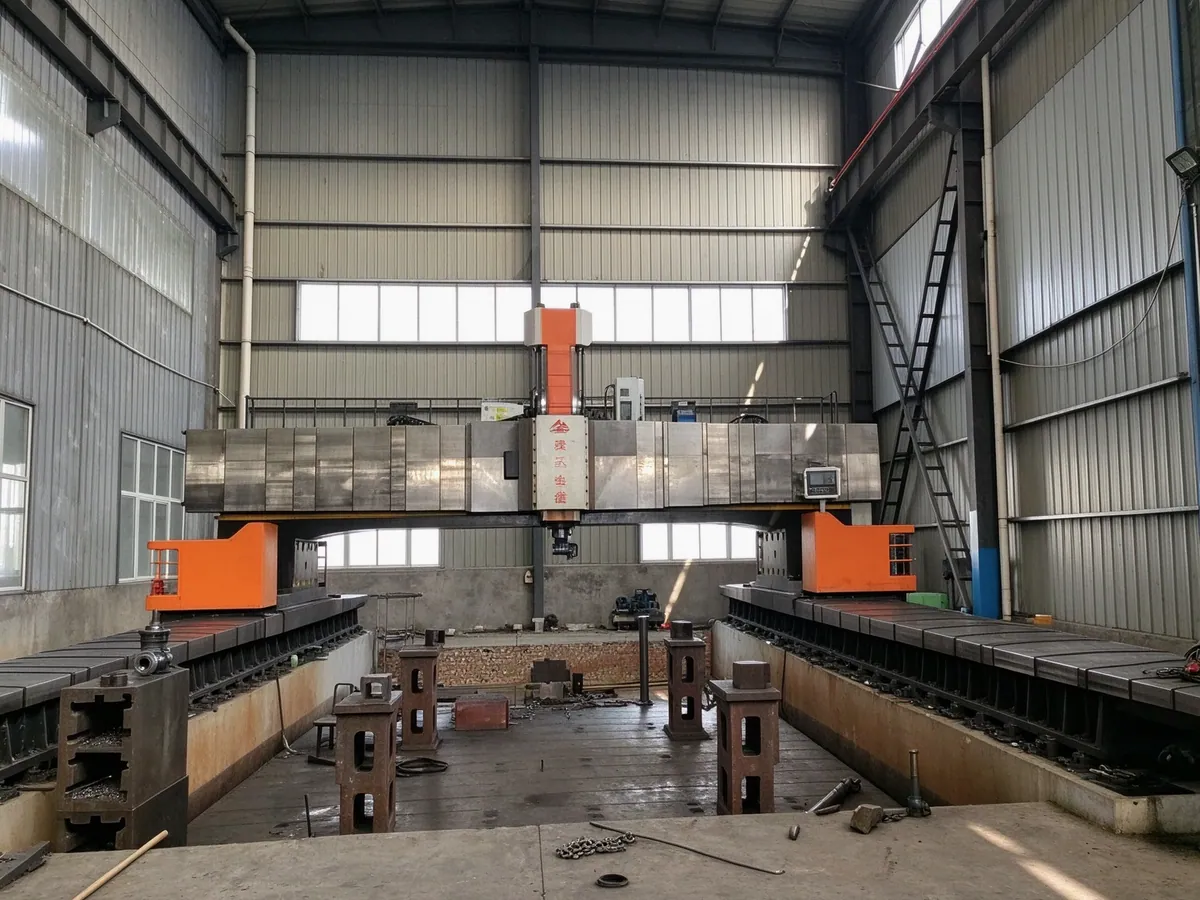

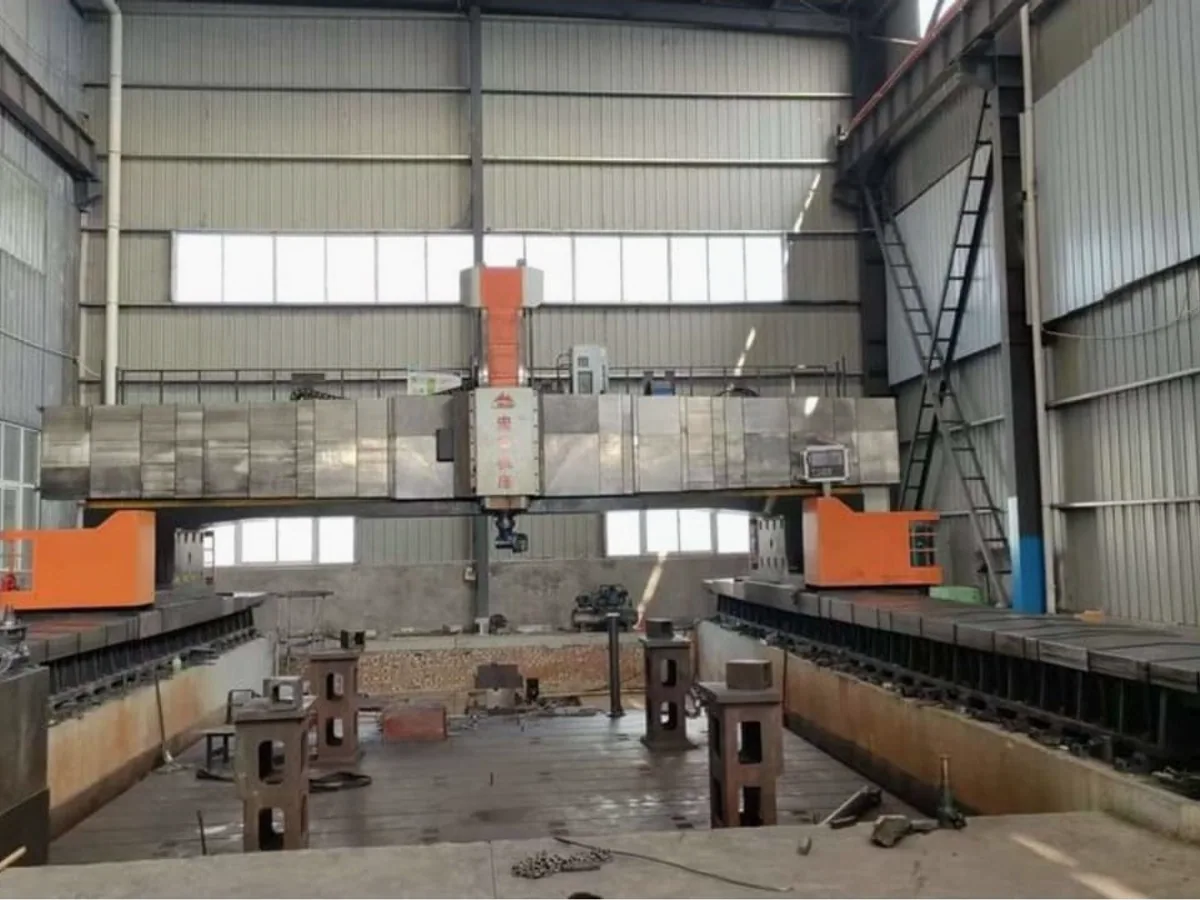

018 m CNC gantry machining center
oversize and long parts · multi-face machining
One-set-up multi-face machining for large frames, beams and bases; milling, drilling and tapping in a single operation.

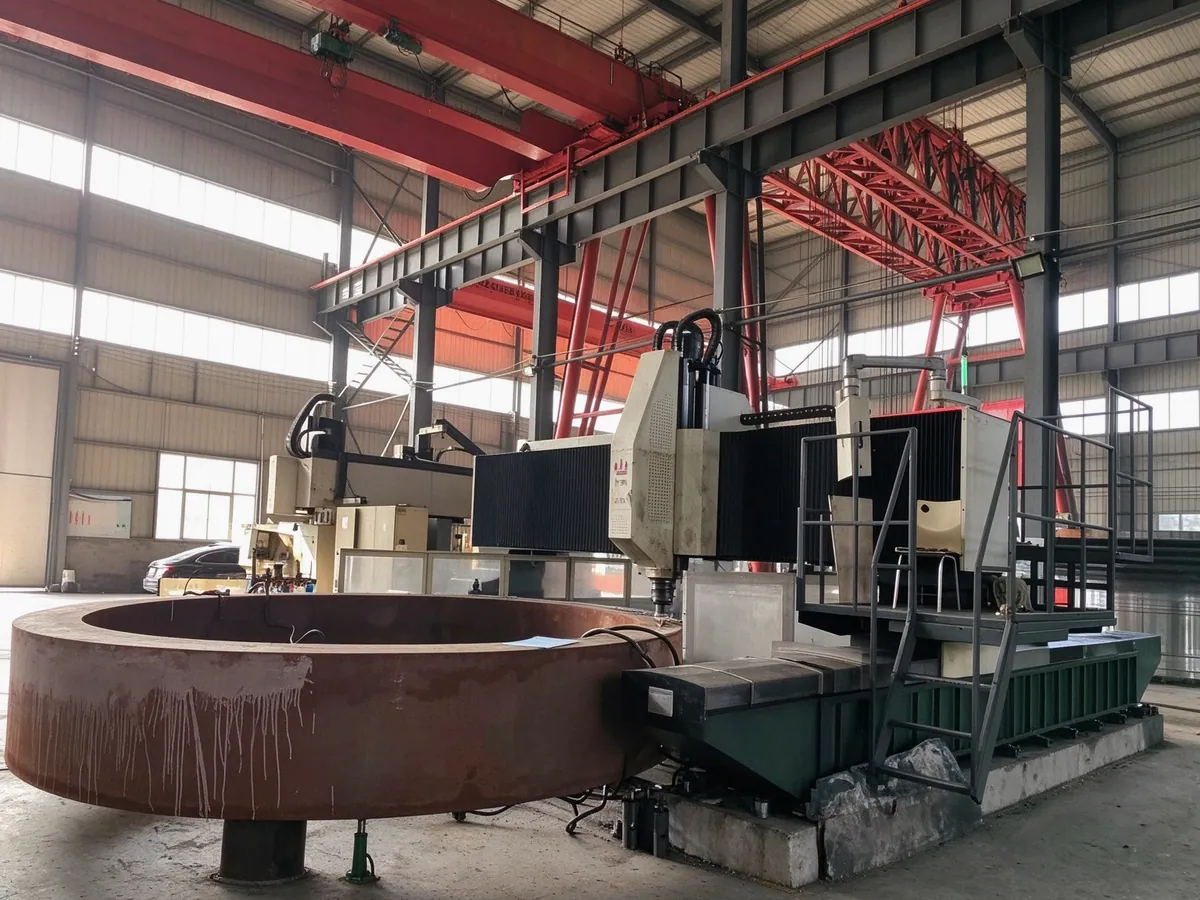

028 m CNC gantry mill
large faces · sides · step faces
Planes, side faces and step faces on large castings, forgings and weldments; suited to heavy roughing and finishing.

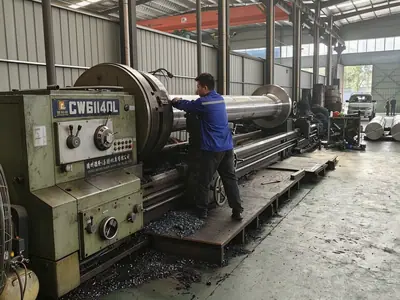

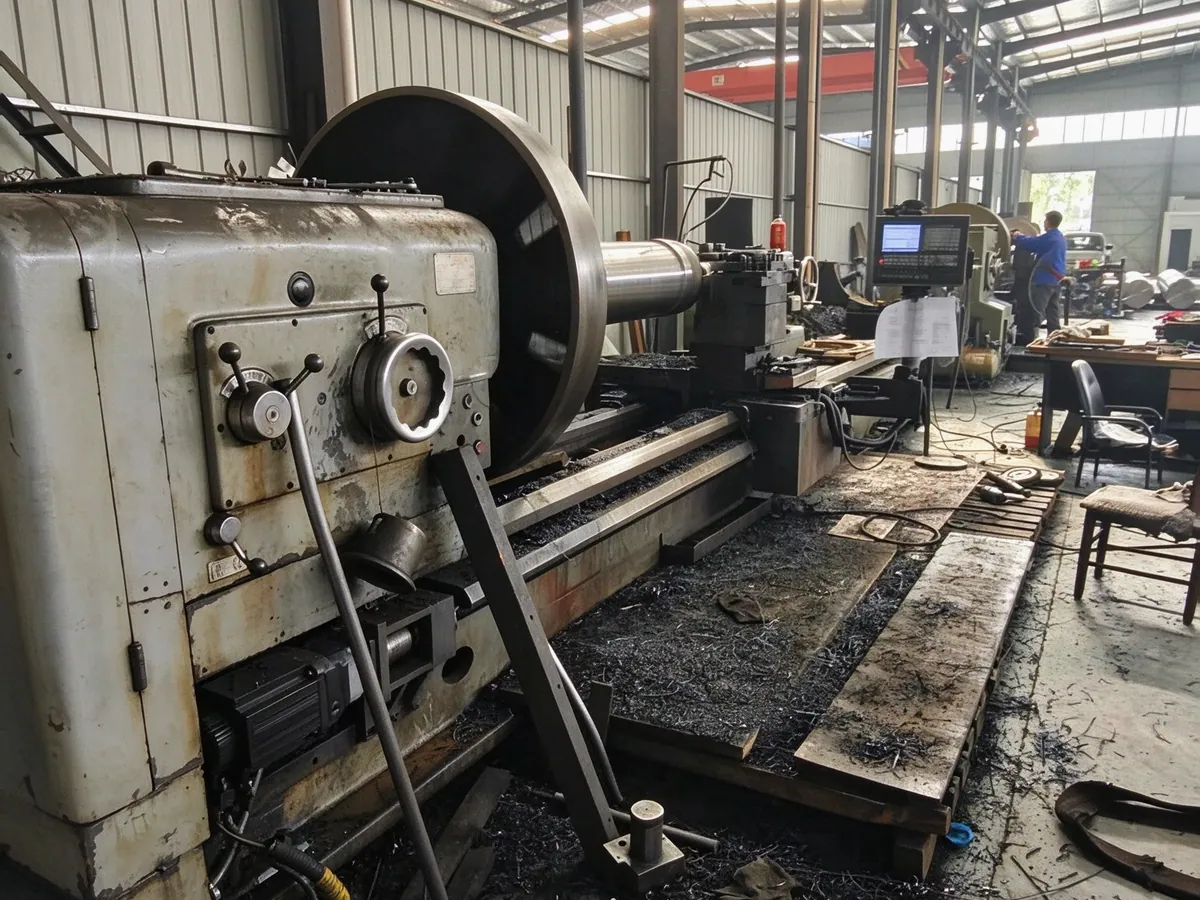

035 m horizontal lathe
large shafts · flanges · rollers
Large shafts, flanges, rollers and rotationally symmetric parts; OD, face and bore turning controlled to drawing.

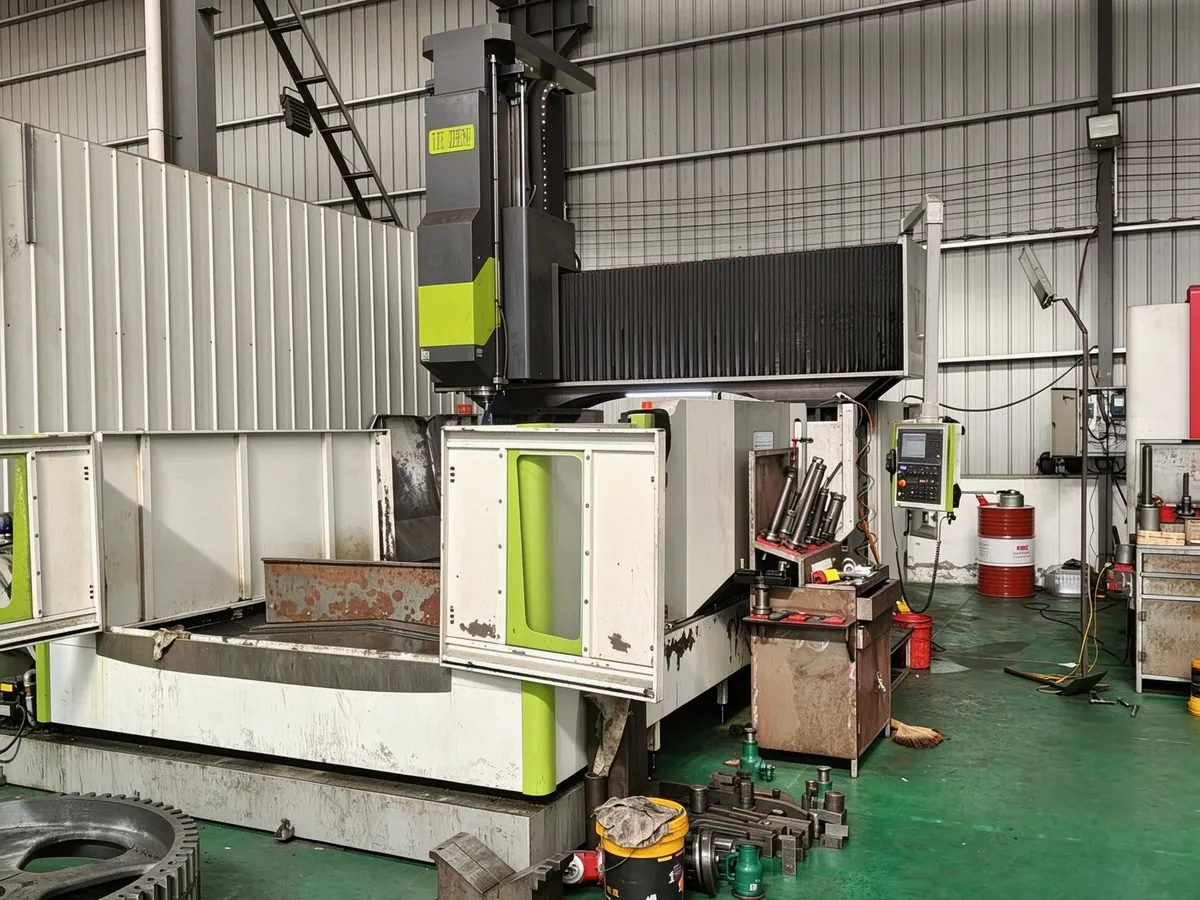

044 m CNC gantry mill
medium frames · plate parts
Multi-face milling for medium frames, plate parts and structures, balancing work envelope and throughput.
- 05
2.5 m CNC gantry mill
medium structures · mould parts
Milling, drilling and tapping for medium structures, mould parts and batch frames.

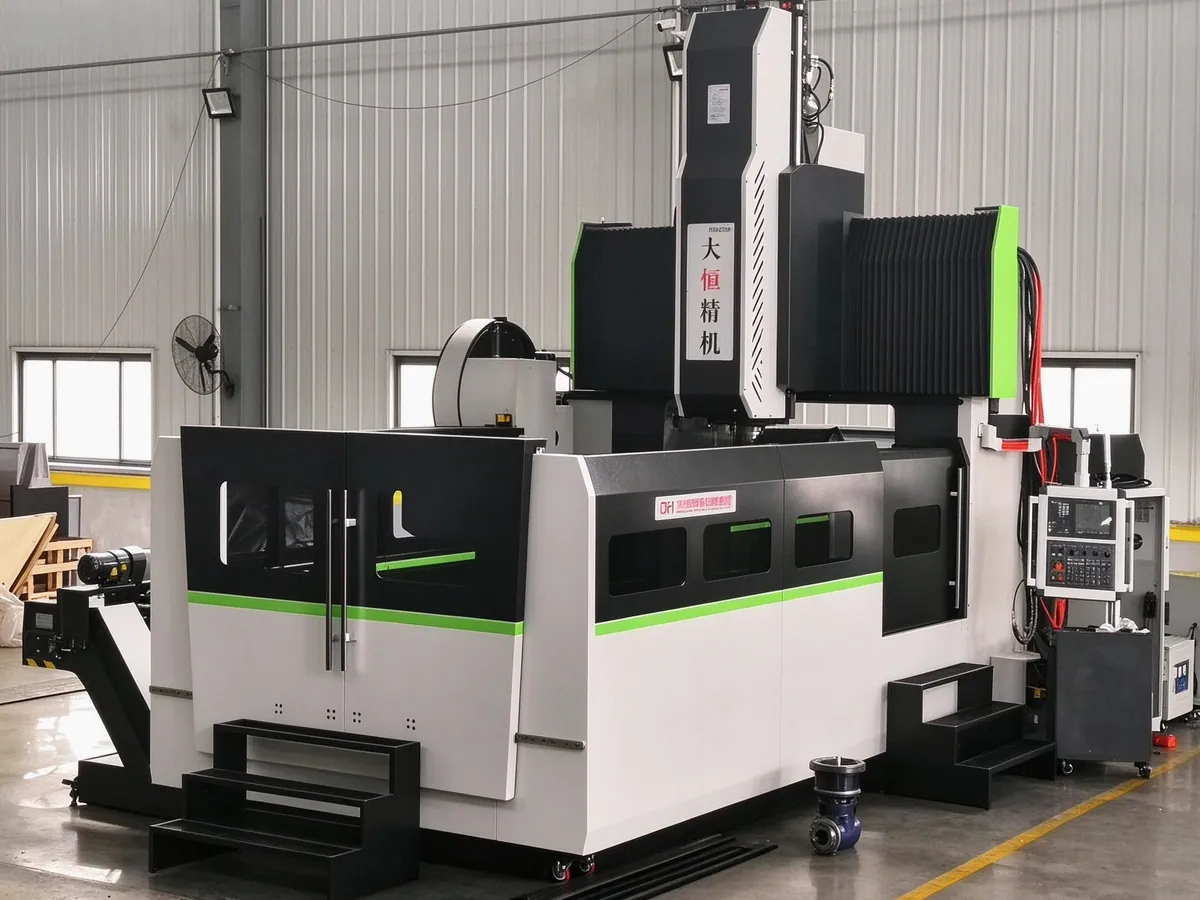

061160 machining center
small precision parts · mill-drill-tap
A vertical machining center for small and medium precision parts, bearing housings and connectors.

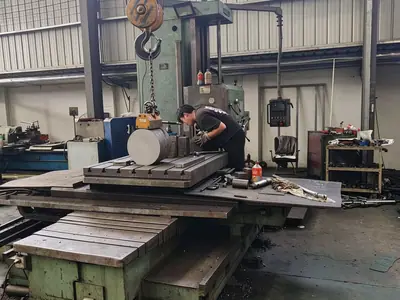

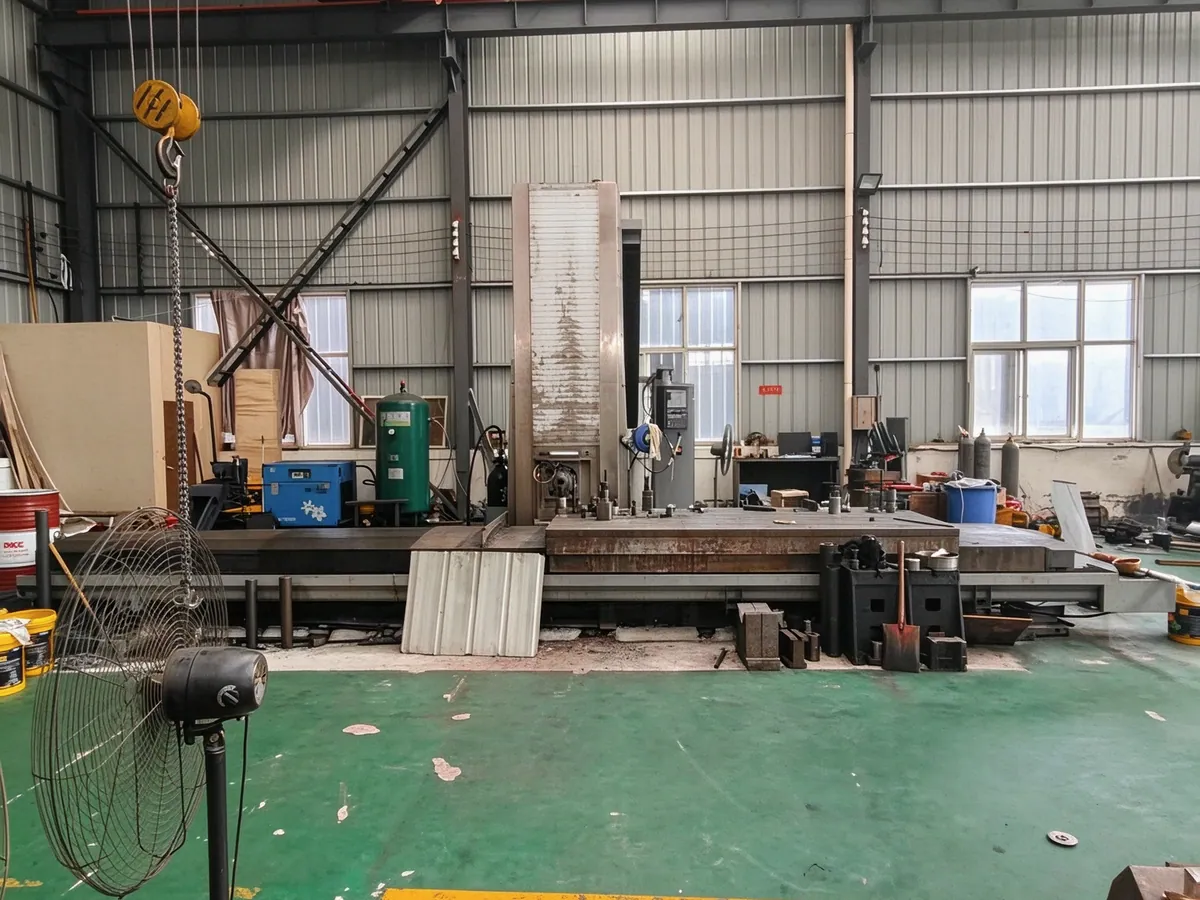

07CNC horizontal boring machine
housings · bearing seats · large bores
Housings, bearing seats and large bore systems, with focus on concentricity, hole spacing and face squareness.

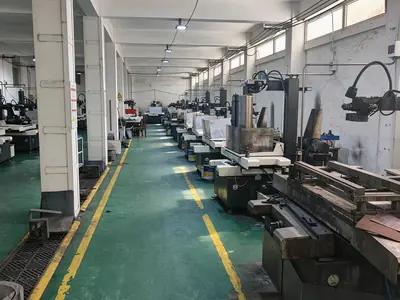

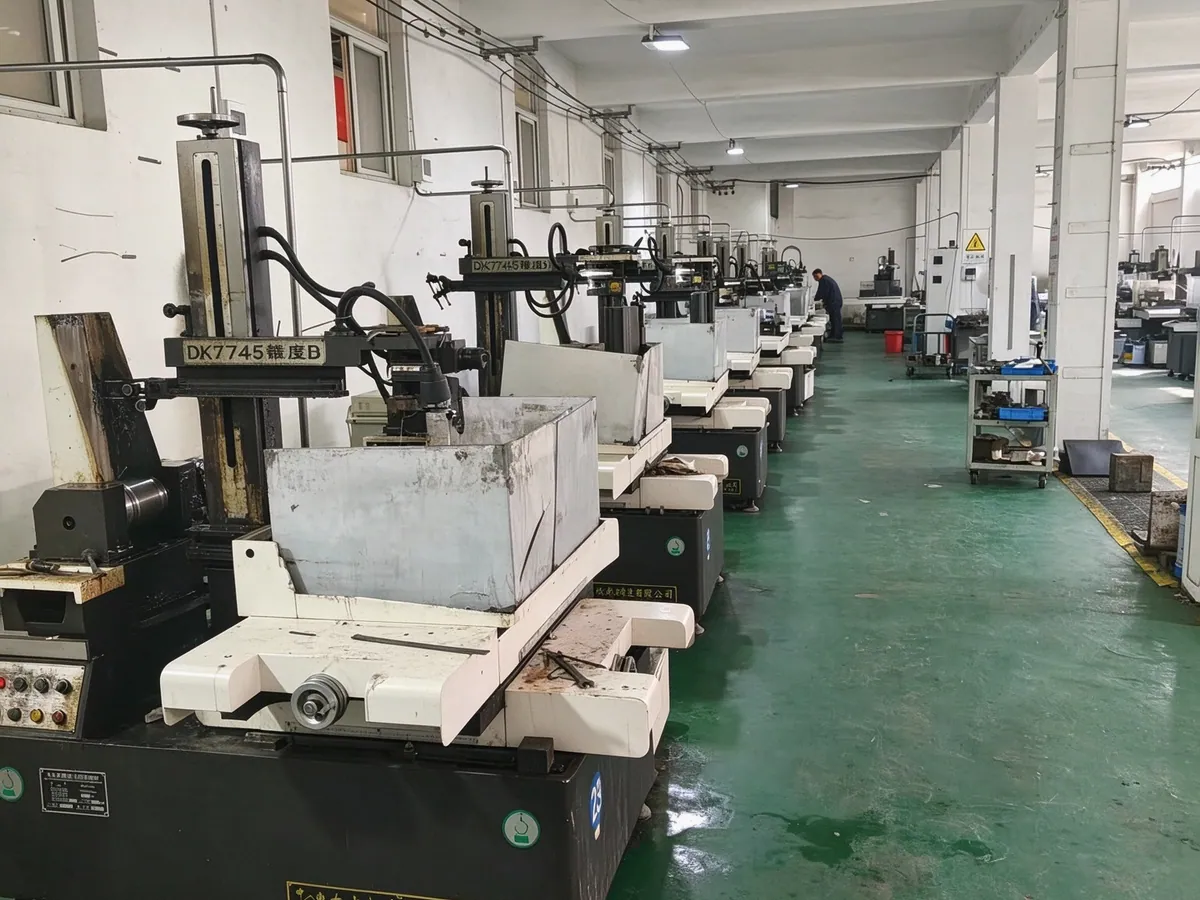

08CNC wire EDM
hardened material · profiled contours
Cutting hardened material, profiled holes and fine contours for tooling and critical parts.

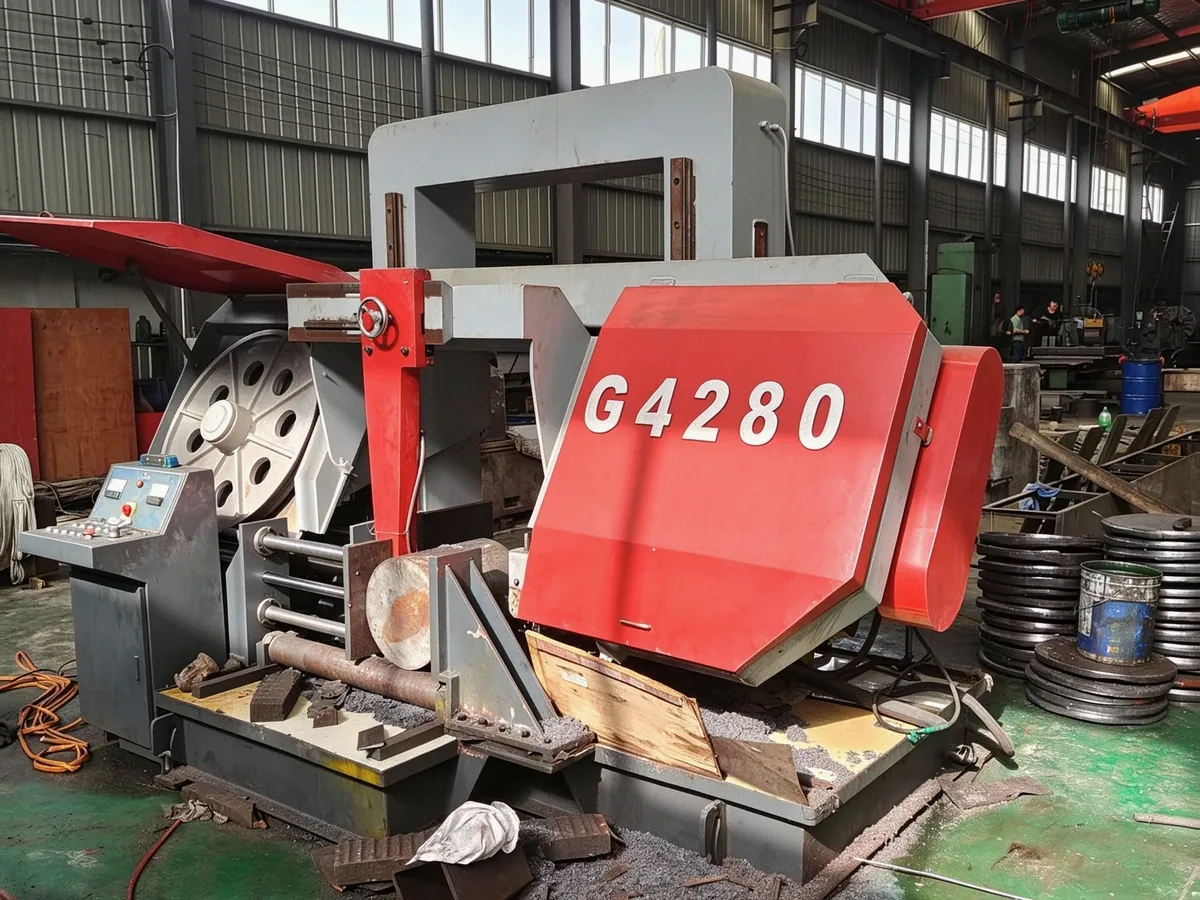

09Large band saw
ingots · forgings · bar cutting
Length cutting of large ingots, forgings and bar stock, providing stable blanks for turning and milling.

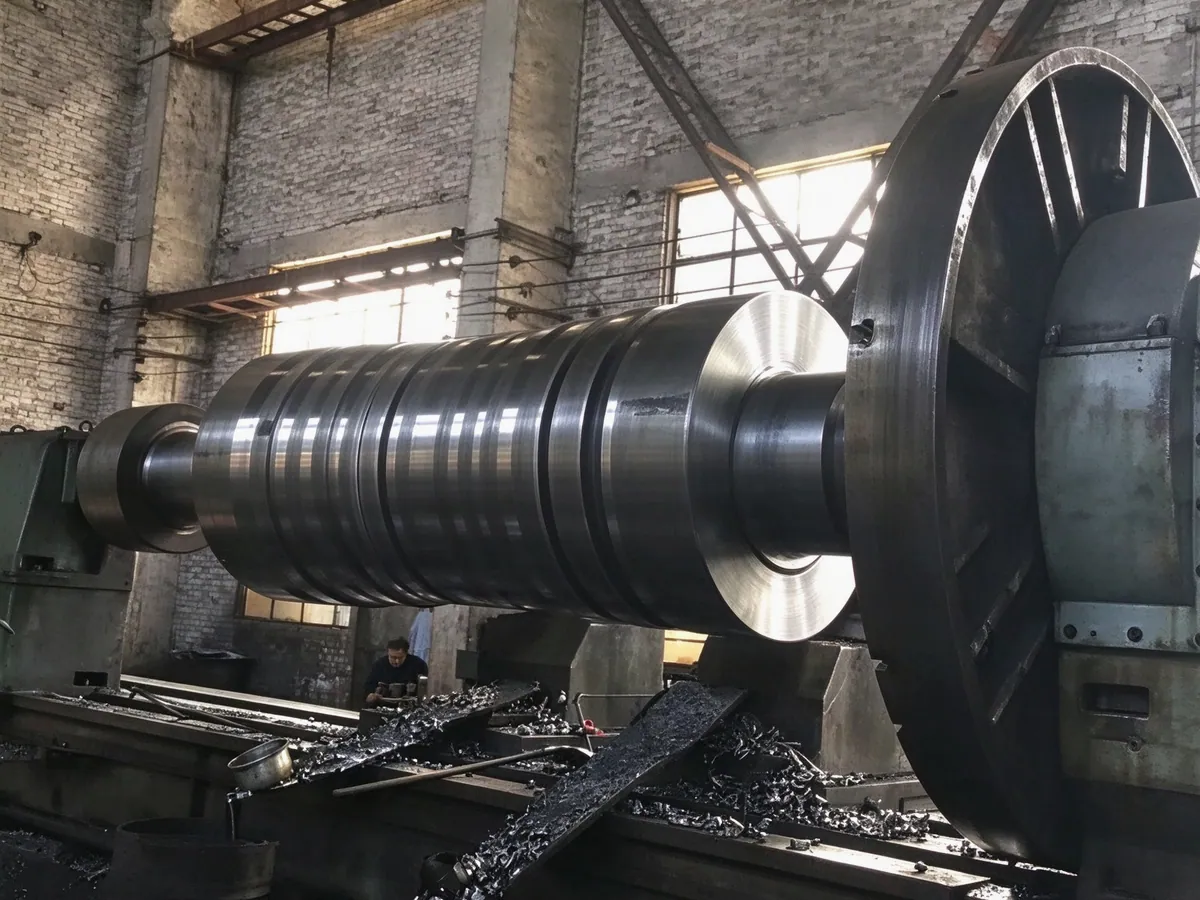

10Large horizontal lathe
large shafts · discs · threads
OD, face and thread work on large shafts and discs; a steady rest handles long shafts.

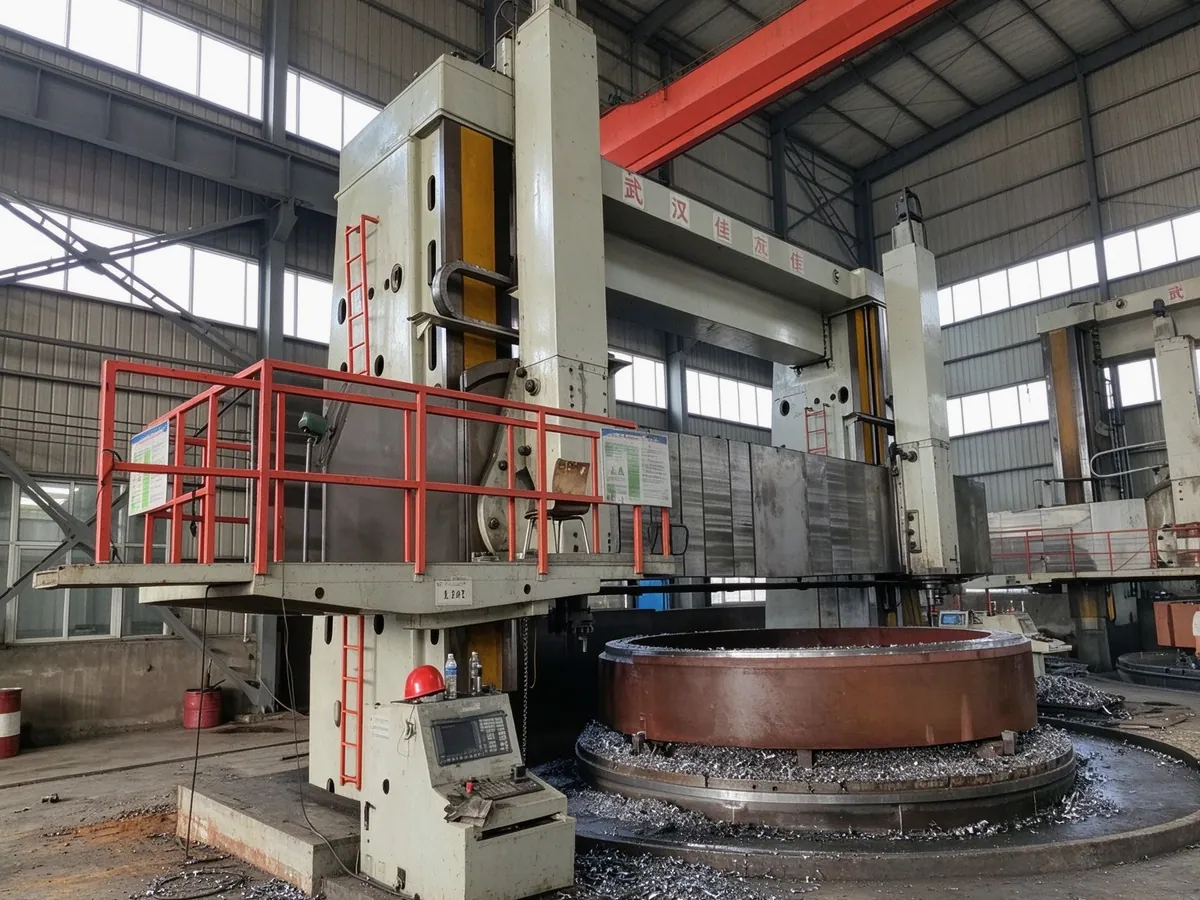

11CNC vertical lathe
discs · hubs · large-diameter short parts
Faces, OD and bore of large discs, hubs and rotationally symmetric parts; complements the horizontal lathes.
Need us to confirm fixturing and operations against your drawing? Send the part size, material and quantity; we will review the process against the machines we have.
