Custom parts to drawing
Non-standard · weldments · one-off to small batch

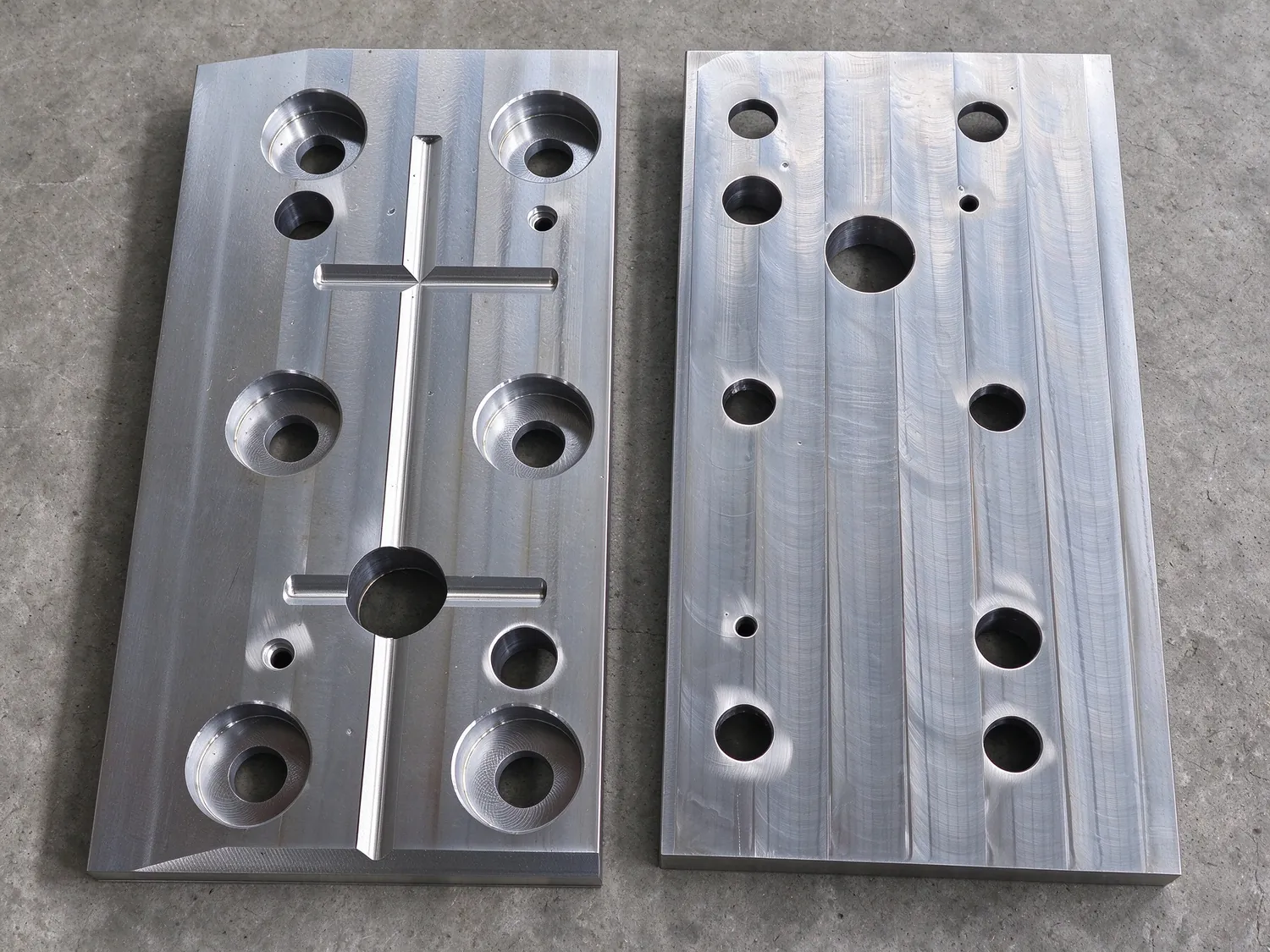

Parts that do not fit a family: weldments, frames, brackets, one-off replacements for equipment nobody stocks anymore. We work from a drawing, a sample, or a drawing we agree with you against the operating conditions. One piece or a small batch, the route is the same — review the drawing, plan the operations, machine, inspect, then pack for the trip.
Specifications
- Batch size
- One-off to small batch
- Input
- Drawing · sample · agreed sketch
- Machining
- Gantry mill · boring · turning · wire EDM
- Tolerance
- Stated at quote, before the order
- Inspection
- Dimensional report with the part
Typical use
- Replacement parts for discontinued equipment
- Weldments, frames and base plates
- Brackets, adapters and fixtures
- Prototype parts before a production run
Send the drawing even if it is incomplete. Missing material, tolerance or coating is easier to settle before quoting than after.
Typical process
01
Cutting
CNC cutting
02
Welding / rough machining
per welding procedure
03
Stress relief
remove welding distortion
04
Gantry milling
large faces and datums
05
Boring
CNC horizontal boring machine
06
Drilling / tapping
per hole layout
07
Inspection
dimensions · geometry · welds
08
Coating and dispatch
to customer coating standard
Girth gears · ring gears · internal teeth
Need us to confirm fixturing and operations against your drawing? Send the part size, material and quantity; we will review the process against the machines we have.
Send a drawing, get a quote
