Castings and forgings
Housings · hubs · bearing seats · machined blanks

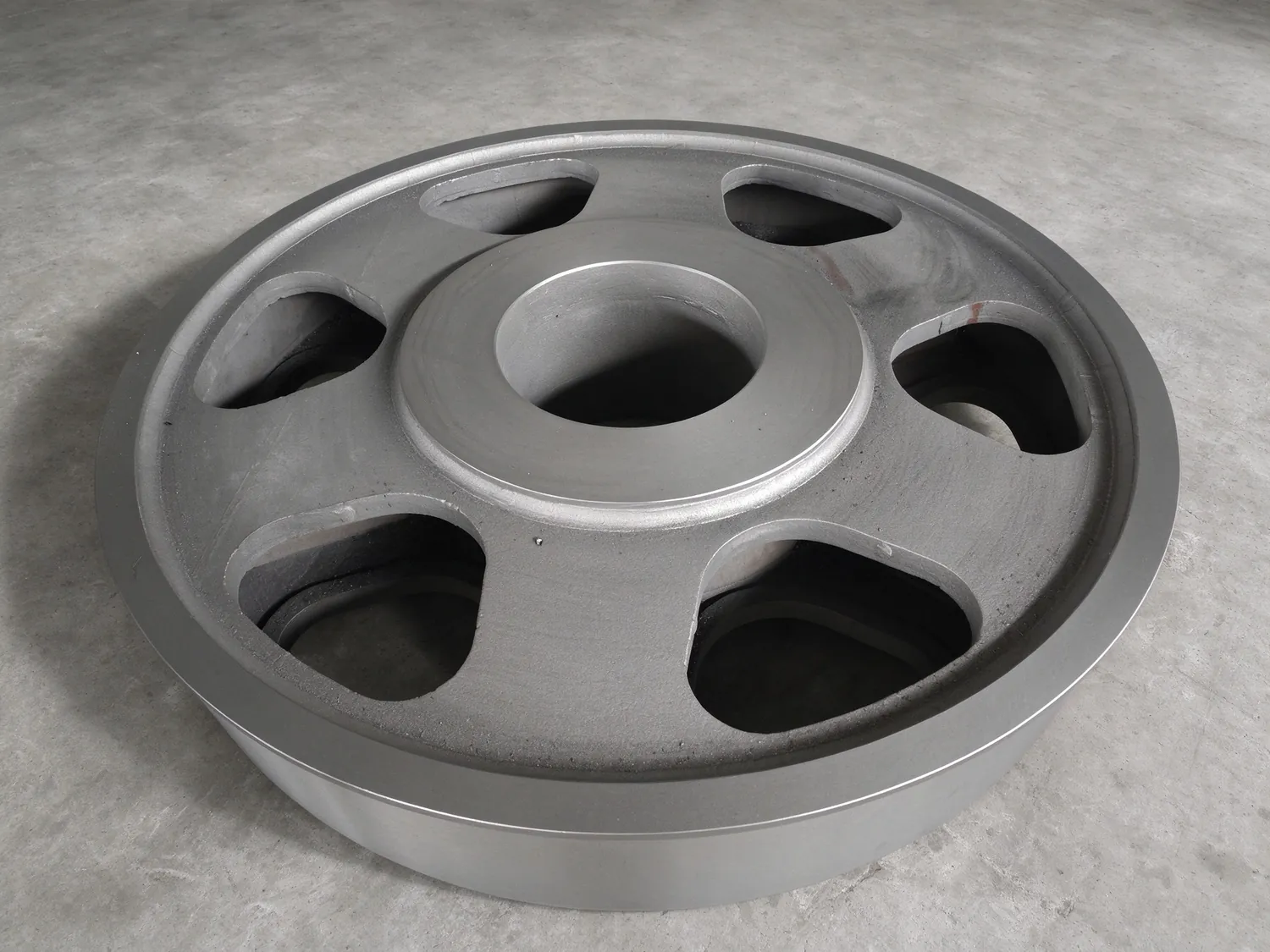

Cast and forged blanks machined on the same floor that finishes our own parts: bearing housings, gearbox casings, hubs and rings. We source the casting or forging from a foundry or forge we have used before, verify the grade against the mill certificate, and machine it to your drawing. Stress relief sits between roughing and finishing, so the bore does not close up after the part leaves us.
Specifications
- Blanks
- Cast steel, cast iron, forged rings and blocks
- Sourcing
- Foundry and forge partners, grade verified on the mill certificate
- Machining
- Gantry mill · horizontal boring · vertical lathe
- Stress relief
- Between roughing and finishing
- Inspection
- Dimensional · geometric tolerance · UT on request
Typical use
- Bearing housings and gearbox casings
- Hubs, rings and flanges
- Mill end caps and trunnion parts
- Machined weldments and frames
We machine castings and forgings; we do not pour or forge them. If your drawing specifies the foundry or the heat number, say so at the quote stage.
Typical process
01
Cast or forged blank
grade per drawing
02
Material verification
mill certificate, checked on receipt
03
Rough machining
allowance for distortion
04
Stress relief
before finishing
05
Finish machining
faces, bores and datums
06
Drilling and tapping
per hole layout
07
Inspection
dimensions · geometry
08
Coating and dispatch
rust prevention and packing
Non-standard · weldments · one-off to small batch
Need us to confirm fixturing and operations against your drawing? Send the part size, material and quantity; we will review the process against the machines we have.
